Resonance Core

Microwave Recycling System Using Gradient Density Plasma and Magneto Optics

Safety protocols included

Exact wording preserved • All equations formatted

SECTION 01 / 10

Safety and Experimental Requirements

These experiments involve high-voltage systems, microwave radiation, vacuum systems, and plasma generation. They must only be performed by qualified personnel in a properly equipped laboratory environment with appropriate safety measures, shielding, and regulatory compliance.

Detailed safety protocols and risk assessments are available upon request to qualified research institutions.

Next: Executive Summary

SECTION 02 / 10

Executive Summary

The Resonance Core explores a plasma-based approach to microwave heating in fusion-relevant conditions. It uses a levitated dipole magnetic bottle configuration with controlled radial density gradients — an underdense central region surrounded by overdense edge layers — to form an internal “plasma mirror.” This boundary is intended to reflect and recirculate injected microwaves through the plasma volume using plasma-frequency cutoff reflection, Faraday rotation, and Cotton-Mouton birefringence.

This dynamic plasma boundary is designed to reduce losses compared to physical walls or antennas, potentially allowing improved recirculation.

Key Features

Combines established plasma physics phenomena (density gradients, wave-plasma interactions, magnetic confinement) in one architecture.
Intended to be scalable in principle from benchtop experiments to larger systems.
Designed for construction with standard laboratory components and techniques.

Development Roadmap

The immediate priority is a modest Neon Plasma Mirror Proof-of-Concept device (30–90 cm scale). This low-risk test uses stable neon plasmas at 2.45 GHz to examine microwave recirculation physics without fusion fuels or extreme conditions. Key metrics include measurable Q-factor improvement over an empty cavity, repeatable density gradient formation (L_n ≈ 1–2 cm), and reflection performance.

Positive results would provide data on the core concept and support further development toward a fusion-conditions prototype.

This concept may offer a contribution to plasma heating methods, with possible relevance to fusion research, industrial plasmas, and related applications. Full details, experimental plans, and notes follow.

SECTION 03 / 10

Technical Description

Title

Resonance Core: Microwave Recycling System Using Plasma Density-Gradient Magnetic Bottles

Field

This invention relates to plasma physics and magnetic confinement techniques, with possible applications in fusion research, energy systems, propulsion concepts, and industrial plasma processes.

Background

Magnetic confinement fusion systems require substantial auxiliary heating power to reach and sustain fusion conditions. Conventional microwave heating methods suffer from limited efficiency due to single-pass absorption or losses at material walls. Physical mirrors and resonant cavities add complexity, suffer from erosion and neutron damage, and increase system cost. A high-efficiency microwave recycling system that multiplies the effect of externally launched power without relying on solid mirrors or cavity walls is needed.

Summary

The present project, referred to as the Resonance Core, provides a microwave recycling system within a magnetic bottle configuration. Engineered electron density gradients — an underdense core surrounded by overdense edge layers — enable the plasma itself to act as both a propagating medium and a high-efficiency reflector without physical mirrors or walls.

Microwaves in the 2.45–10 GHz range are supplied externally. After initial ignition by an external microwave pulse, the externally launched microwaves undergo Faraday rotation and Cotton-Mouton birefringence during propagation through the underdense core and are reflected at the plasma-frequency cutoff in the overdense edge layers. This recirculation enables multiple passes of the microwave energy within the magnetic bottle, with Q-factors to be quantified experimentally, and serves as an efficiency multiplier for auxiliary heating, thrust vectoring, or beamed power applications.

A laboratory-scale embodiment (30–90 cm magnetic bottle) is feasible today to demonstrate the recycling mechanism, measure reflectivity and polarization effects, and quantify the achieved Q-factor. The laboratory demonstration is too small to sustain fusion conditions; it serves solely as a proof-of-concept. The same principles are directly scalable to larger magnetic bottle embodiments for enhanced performance in fusion systems.

Detailed Description

The Resonance Core operates by simultaneously harnessing three established plasma-physics effects inside a magnetic bottle:

Faraday rotation of the polarization plane, given by θ = V B∥ L
Cotton-Mouton birefringence producing a phase delay between ordinary (O) and extraordinary (X) modes, Δn ∝ B⊥²
Plasma mirror cutoff reflection when the microwave frequency ω is below the local plasma frequency ωp at the engineered overdense edge layers
ωp ≈ 5.6415 × 10¹ √n_e rad/s (n_e in m⁻³)
or equivalently ωp ≈ 5.6415 × 10⁴ √n_e rad/s (n_e in cm⁻³)

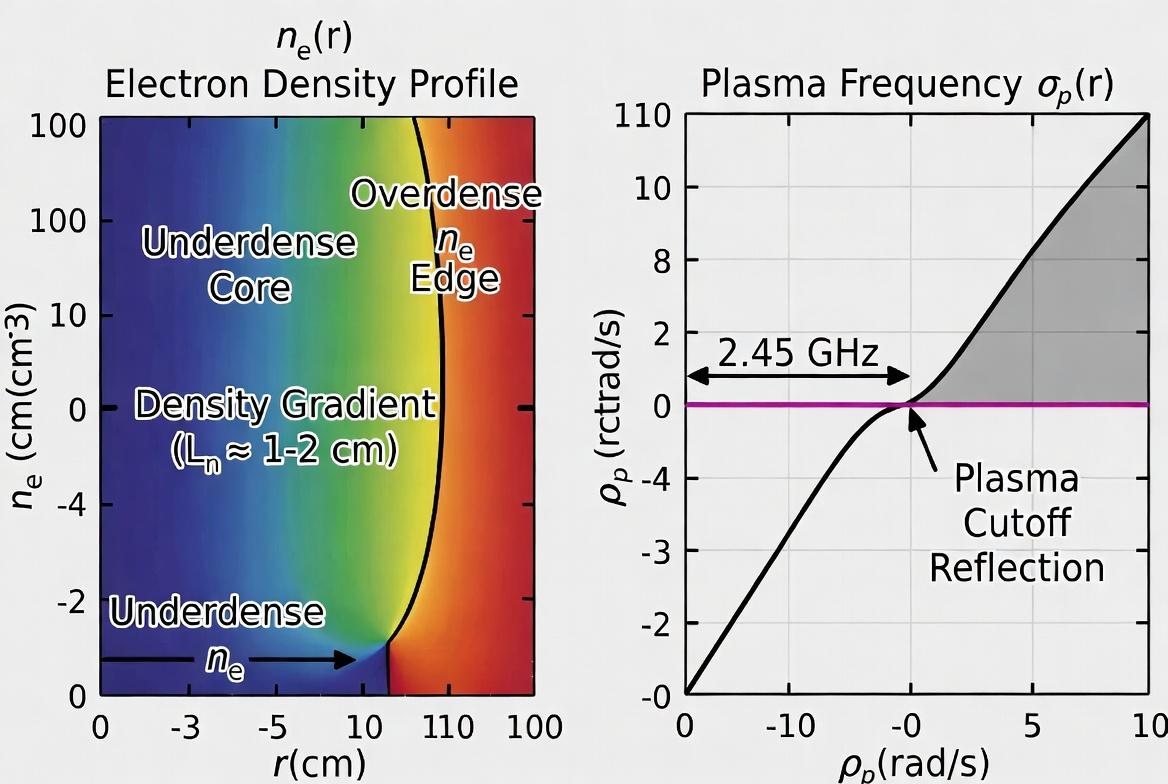

Radial electron density profile and plasma frequency cutoff. The engineered gradient (Lₙ ≈ 1–2 cm) creates an underdense core (transparent) and overdense edge where microwaves reflect at the plasma frequency cutoff layer.

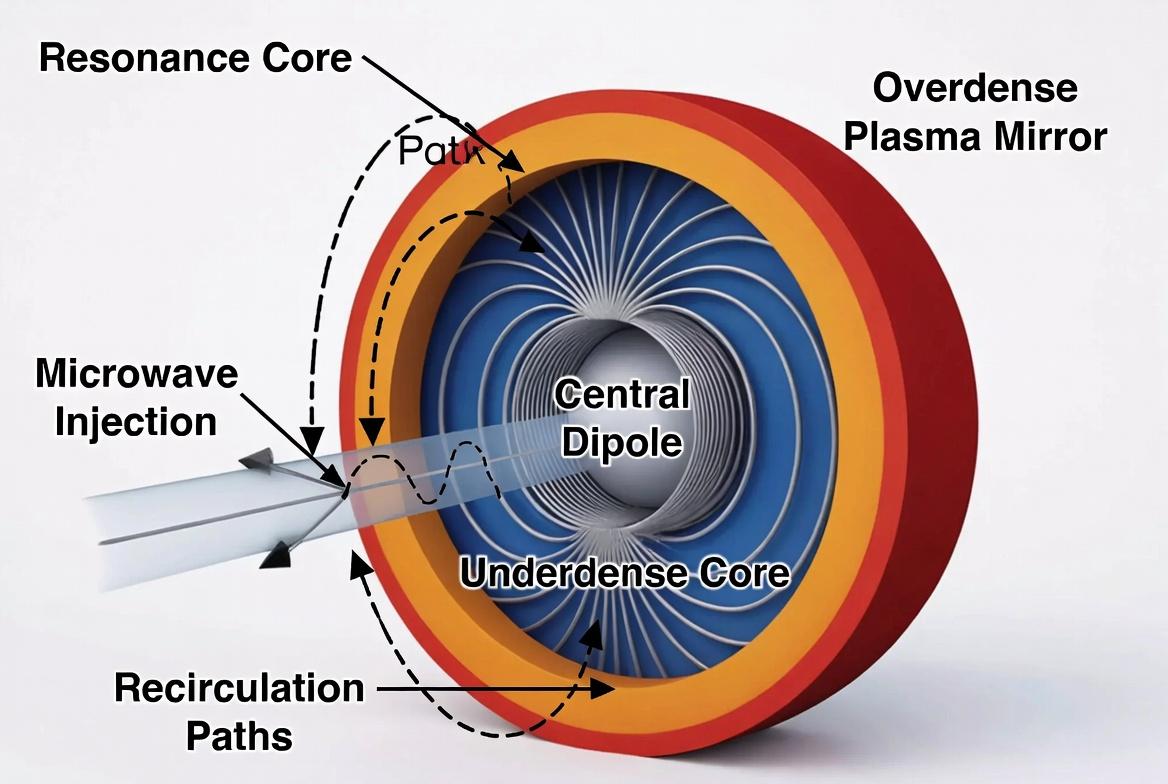

Microwave propagation in the Resonance Core. Waves traveling through the magnetized underdense plasma undergo Faraday rotation and Cotton-Mouton birefringence before reflecting at the overdense plasma cutoff layer, enabling recirculation.

The microwaves are launched externally (e.g., from gyrotrons or magnetrons). In the chosen microwave band, the core plasma remains underdense and transparent, while the edge layers are overdense. Density gradients are created and controlled using helicon or ECR sources (target densities 10¹⁶–10¹⁹ m⁻³). The full Appleton-Hartree dispersion relation governs propagation, but the O-mode cutoff at ωp provides a reliable working approximation, routinely yielding high reflectivity as demonstrated in tokamak reflectometry and laboratory plasma mirror experiments.

The system allows repeated recirculation of the externally launched microwave energy inside the magnetic bottle. This yields a resonant system that multiplies input power without material interfaces inside the plasma volume. Preferred fuel for fusion applications is D-He³ (aneutronic), though the recycling mechanism applies to any magnetically confined plasma.

Lab-Scale Demonstration

A small-scale laboratory demonstration is feasible today with a 30–90 cm spherical magnetic bottle (levitated-dipole configuration, B = 0.1–2 T), standard helicon or ECR sources for density control (including edge-localized helicon antennas to engineer and maintain the required hollow density profile against natural central peaking), and off-the-shelf 2.45 or 10 GHz equipment with polarimetry and reflectometry diagnostics. Density can be swept across cutoff while measuring combined reflectivity, Faraday rotation, and Cotton-Mouton shifts to quantify the achieved Q-factor and validate the recycling mechanism. This demonstration proves the core concept but is too small to sustain fusion conditions.

Advantages

Can significantly reduce auxiliary power requirements for fusion ignition and sustainment in scaled systems.
Eliminates physical mirror erosion and neutron damage issues.
Enables more compact magnetic bottle designs.
Provides a practical efficiency multiplier using only established plasma and microwave techniques.

Enablement

The invention is fully enableable by a person of ordinary skill in plasma physics and microwave engineering. All components (magnetic bottles, density control via helicon/ECR, microwave sources, and diagnostics) are commercially available or routinely implemented in existing fusion research facilities. Gradient profiles and ray-tracing details sufficient for construction are known in the art or can be readily developed.

Abstract

The present concept provides a microwave recycling system for achieving and sustaining fusion-relevant plasma conditions with substantially reduced input energy requirements. The system comprises a containment vessel defining a reaction volume, a central magnetic dipole, and a magnetized gas configured to form a plasma having a controlled density gradient within the reaction volume. Microwave energy introduced into the reaction volume is efficiently reflected and recirculated by the plasma density gradient and magnetic field, creating a reflective plasma boundary that confines and recycles the microwave energy within the central region.

The architecture enables high-efficiency energy recirculation while maintaining plasma stability, offering a scalable approach suitable for laboratory validation as well as larger embodiments. Methods of operating the system and various alternative configurations are also disclosed.

SECTION 04 / 10

Neon Proof of Concept

Neon Plasma Mirror Proof-of-Concept (PoC)

Objective

Demonstrate and quantify a high-Q plasma mirror that recycles microwave energy through engineered density gradients in a magnetized neon plasma. This test validates the fundamental microwave-plasma interaction physics that underpins the Resonance Core concept, without requiring fusion conditions.

Concept

A magnetized neon plasma is created with a controlled radial density gradient. Microwave power is injected into the plasma volume. The combination of Faraday rotation, Cotton-Mouton birefringence, and plasma-frequency cutoff reflection at the density gradient is expected to create an effective internal mirror, allowing a significant fraction of the injected microwave power to be recirculated (high-Q).

The test uses neon because it forms stable, easily diagnosable plasmas at modest power levels and does not require the high temperatures or fuel handling associated with fusion.

Why This Test Matters

Demonstrates the core plasma mirror recycling mechanism in a laboratory setting.
Provides measurable data on Q-factor, reflection efficiency, and power recirculation.
Generates credible experimental results that make the full Resonance Core (fusion-based) PoC significantly more attractive to potential partners and fusion labs.
Can be executed with existing or modestly customized plasma laboratory equipment.

Proposed Test Article (30–90 cm scale)

• Vacuum chamber with ports for microwave injection, diagnostics, and pumping.
• Levitated dipole or simple internal magnet configuration to create the required magnetic field and plasma confinement.
• Microwave source in the 2.45 GHz range (or 10 GHz for higher density tests).

SECTION 05 / 10

Neon PoC Laboratory Model

Neon Plasma Mirror Proof-of-Concept – Full Laboratory Protocol

Purpose

This section provides a complete, practical protocol so that any competent plasma physics or microwave engineering laboratory can replicate the core plasma-mirror microwave recirculation effect. The goal is to demonstrate efficient microwave energy reflection and recirculation using a controlled plasma density gradient in a magnetic bottle configuration.

Chamber Specifications

Cylindrical vacuum chamber with an inner diameter of approximately 60 cm for the gas/plasma volume
Total chamber length ~80–100 cm (including end caps)
Material: Non-magnetic stainless steel or high-purity quartz (quartz preferred for optical access)
High vacuum capability (base pressure ≤ 10⁻⁵ Torr)

Central Magnetic Dipole

Diameter approximately 10 cm
Capable of generating a central magnetic field of 0.5–2 Tesla (adjustable)
Mounted precisely at the geometric center of the chamber on a non-magnetic support

Working Gas

High-purity neon (99.999% or better)
Operating pressure range: 0.5 – 5 millitorr (start at ~1.5 millitorr)

Microwave System

Frequency: 2.45 GHz (standard ISM band magnetron or solid-state source)
Power: Start at 500–1000 W continuous wave, scalable to 5–10 kW
Coupling: Side-entry waveguide or antenna port entering horizontally
Critical: Continuous monitoring of forward and reflected power (primary indicator of recirculation)

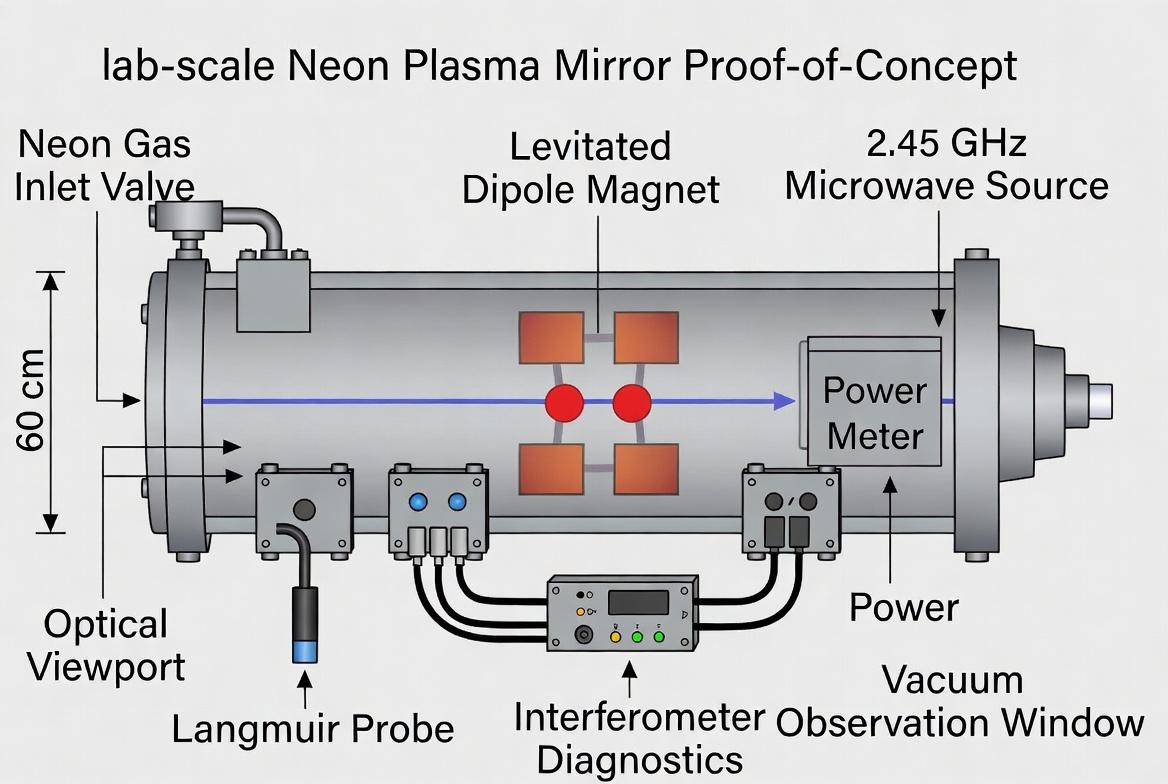

Laboratory-scale Neon Plasma Mirror Proof-of-Concept (~60 cm cylindrical chamber). Key elements include central dipole magnet, 2.45 GHz microwave injection, neon gas handling, and diagnostics for density profiling and power balance.

Step-by-Step Operating Procedure

Evacuate the chamber to base vacuum (≤ 10⁻⁵ Torr).
Introduce high-purity neon gas and stabilize pressure in the 0.5–5 millitorr range (start at ~1.5 millitorr).
Energize the central dipole to establish 0.8–1.5 T at the center.
Apply microwave power starting at ~500 W and gradually ramp up while monitoring reflected power.
Observe plasma formation and fine-tune gas pressure, microwave power, and magnetic field to create a stable plasma with a clear radial density gradient (lower density near the center, higher density near the outer boundary).
Optimize for a significant drop in reflected microwave power (target: 40–80% reduction once the plasma mirror effect engages).
Record power balance, plasma luminosity, density profiles, and stability over time (aim for stable operation of at least 5-10 minutes).

Expected Observations

Formation of a stable, brightly glowing plasma with visible radial density variation
Significant reduction in reflected microwave power (typically 40–80% or better when optimized)
Higher central plasma energy density sustained with lower external microwave input than non-mirror configurations
Stable, repeatable operation once parameters are tuned

Note: This protocol provides a solid, actionable starting point. Exact parameters will require experimental optimization based on your laboratory equipment. The basic plasma-mirror recirculation effect should be observable with standard plasma-lab equipment.

SECTION 06 / 10

Full Fusion Conditions PoC

Equipment (Resonance Core only – 30/60/90 cm)

Spherical vacuum shell with integrated cryostat jacket.
Superconducting coil set: 1 central levitated dipole coil + 8–12 shell loops (polar levitation + equatorial trim, push-pull wired for 6-DOF stability).
Cryocooler or liquid-helium feed for coil cooling.
Microwave drive: tunable RF source (start at 2.45 GHz or 10 GHz) + waveguide feed into the core.

Diagnostics suite

Microwave interferometer / reflectometer (density profile + Q factor).
Langmuir probes or optical spectroscopy (n_e(r) and T_e).
B-dot probes (field mapping).
High-speed camera (plasma shape and gradient).
Polarization diagnostics (Faraday rotation angle + Cotton-Mouton ellipticity).
Power meters (input vs. reflected/circulating power).

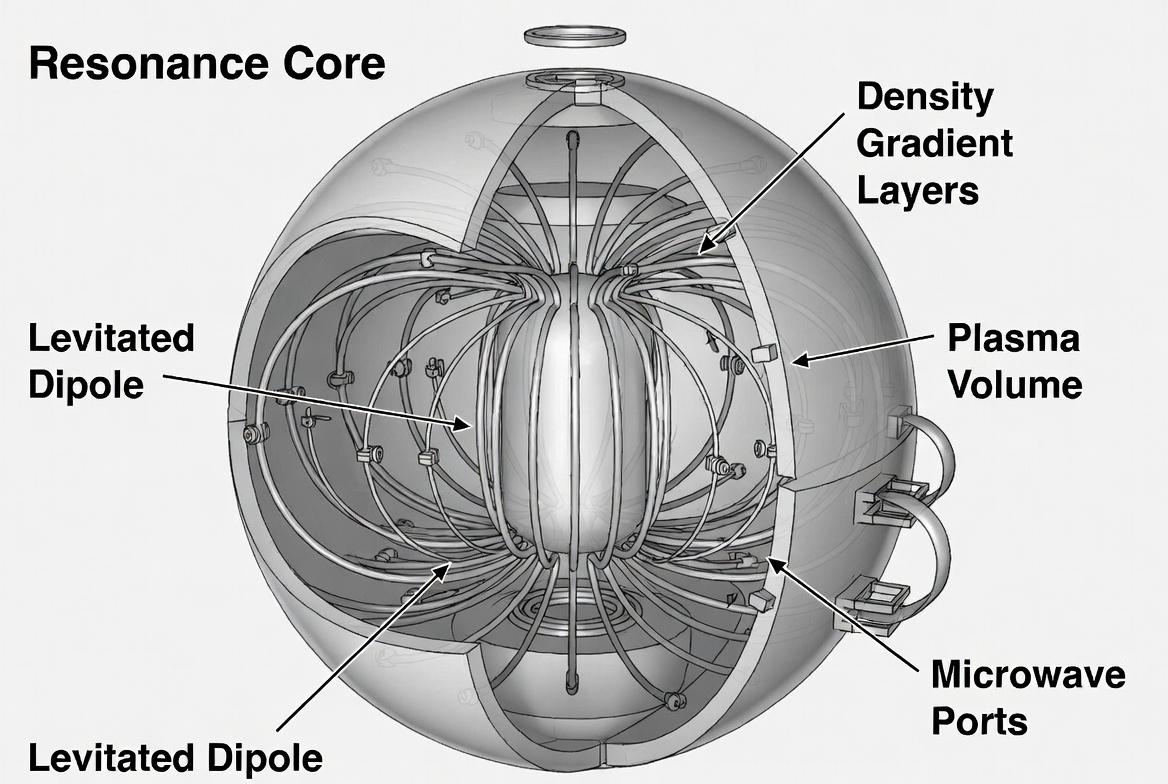

Levitated dipole magnetic bottle configuration for scaled Resonance Core embodiments. Central levitated dipole creates closed field lines; auxiliary coils provide stability. Microwave ports allow access while maintaining the engineered plasma density gradient.

Configuration (step-by-step)

Assemble shell with 8–12 shell loops in the cryostat. Mount central dipole coil on temporary mechanical support. Evacuate to <10⁻⁶ Torr. Cool coils to operating temperature. Ramp shell loops to levitate the central dipole. Introduce low-pressure working gas. Launch microwaves at low power into the underdense core. Tune edge density until the overdense layer reaches plasma-mirror cutoff. Verify the underdense-core to overdense-edge gradient (target L_n ≈ 1–2 cm). Increase RF power and observe polarization sculpting via Faraday rotation and Cotton-Mouton birefringence.

What we will be measuring

n_e(r) profile → confirm underdense core to overdense edge (plasma frequency cutoff ω_p ≈ 56.4146 √n_e rad/s)
Recirculation Q ≈ π / (1 – R_round-trip) from input vs. sustained cavity power
Levitation stability (jitter <1 mm)
Faraday rotation angle and Cotton-Mouton birefringence
Microwave power balance (round-trip reflectivity R_rt ≥ 98.95 %)

Failure criteria: Central coil contacts shell or jitter >2 mm, no stable overdense edge, measured Q too low, cryogenic failure, etc.

SECTION 07 / 10

FAQ 1: Microwave Polarization Management

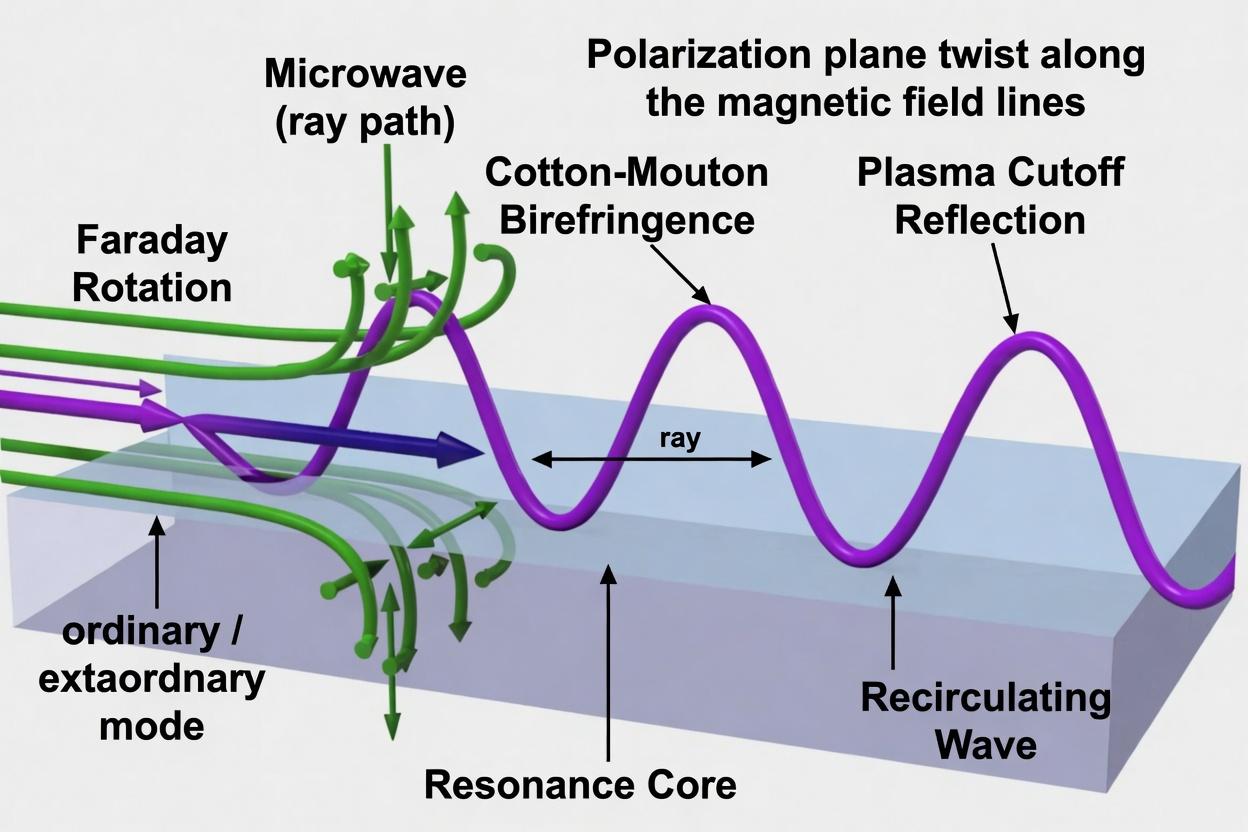

Schematic of Resonance Core showing underdense plasma core, overdense mirror layers, and microwave recirculation paths — Resonance Core concept: Engineered radial plasma density gradient creates an internal plasma mirror. Microwaves recirculate through the underdense core, reflecting at the overdense edge layers.

Resonance Core – Microwave Polarization Management

What we do with the microwaves:
We launch standard microwaves (typically 2.45 GHz or 10 GHz) into the underdense plasma core. As the waves travel through the plasma, the magnetic field sculpts their polarization geometry in two controlled ways so they reflect cleanly at the overdense plasma edge (the plasma mirror) instead of transmitting through or being absorbed.

The reflection itself is caused by the well-known plasma cutoff (ω < ω_p), already observed for decades in tokamak reflectometry and laboratory plasma mirror experiments.

The two polarization effects we actively use are:

Faraday rotation — rotates the polarization plane proportionally to the parallel magnetic field component.
Cotton-Mouton birefringence — introduces a phase difference between the ordinary and extraordinary modes due to the perpendicular field component.

Together these effects allow us to control and optimize how the wave arrives at the plasma mirror boundary for maximum reflection efficiency.

SECTION 08 / 10

FAQ 2: Magnetic Configuration and Shell-Loop Scaling

Magnetic Configuration and Shell-Loop Scaling in the Resonance Core

1. Overall Magnetic Architecture

The Resonance Core uses a levitated-dipole magnetic bottle:

One central superconducting dipole coil (levitated and position-controlled in 6-DOF).
Multiple surface shell loops (superconducting coils embedded in or mounted on the thin graphene shell).
These loops work together with the central dipole to create the magnetic field that confines the plasma and shapes the critical underdense-core → overdense-edge density gradient.

2. Shell-Loop Scaling with Reactor Size

The number, size, and arrangement of the shell loops are not fixed — they are dictated by the diameter of the spherical reactor. As the sphere grows larger, more loops are added and their physical size increases to maintain the required field topology and stability.

At lab/PoC scale (30–90 cm): 8–12 shell loops (polar levitation + equatorial trim).
At theoretical ~12 km asymptotic optimum: approximately 120 shell loops, arranged in a soccer-ball pattern (truncated icosahedron geometry).^*

3. Magnetic Field Strength (B) Behavior

As the reactor diameter increases, the magnetic field strength B decreases (following the scaling required by the coil-current relationship I ∝ B_edge × R). Despite the weaker B, overall confinement performance, recirculation Q-factor, gradient stability (L_n ≈ 1–2 cm), and microwave recycling efficiency all improve dramatically.

This counter-intuitive improvement is one of the key drivers of the exponential/asymptotic scaling law. Larger volume gives the plasma more room to form a smoother, more stable density gradient.

Trace amounts of heavier ions can be periodically introduced into the plasma (for example through vaporization or ion injection). These ions act as a controllable mechanism to help form, sharpen, or stabilize the critical density gradient at the overdense plasma mirror edge, improving the performance and reliability of microwave recirculation. Magnesium is one suitable example, though other heavier ions may also be used.

The Resonance Core architecture is unique in that it deliberately emulates the natural hydrostatic equilibrium found inside stars — inward compressive forces balanced by outward plasma pressure — without relying on gravity. This suggests the system may exhibit significantly different (and potentially more stable) behavior in microgravity environments, where the unwanted effects of planetary gravity are absent.

SECTION 09 / 10

FAQ 3: Central Levitated Dipole Coil Volume Scaling

Central Levitated Dipole Coil Volume Scaling and Its Effect on Loss Budget

1. Volume Fraction Across Scales

At lab/PoC scale (~10 cm diameter): The central dipole occupies approximately 17 % of the total internal volume.
At full scale (~12 km diameter sphere): The central dipole is only ~200 m in diameter and represents just 0.03 % of the total volume.

2. Why This Matters — The “Loss Budget”

In the small PoC the dipole takes up a large fraction of the available space. This creates several practical limitations and a significantly higher overall “loss budget” (scattering, absorption, gradient distortion, edge instabilities, and reduced Q-factor).

At full scale the dipole becomes volumetrically negligible (0.03 %). Almost the entire interior volume is now available for the underdense-core plasma and the clean overdense-edge plasma mirror. This dramatically lowers every category of loss and enables smoother, more stable density gradients.

3. How This Drives the Asymptotic Scaling Law

This volume-fraction improvement is one of the key geometric reasons the system’s performance improves exponentially (or asymptotically) as size increases toward the 12 km optimum. The same basic architecture works from the 60 cm PoC all the way to the 12 km optimal scale.

The PoC has a noticeably higher loss budget because the dipole is still a large fraction of the machine; the full scale reactors essentially eliminate that penalty.

SECTION 10 / 10

Project Vision

Closing Note

The existing fusion research community has achieved remarkable results under extraordinarily difficult conditions. For decades, some of the brightest minds in plasma physics have worked to make fusion viable within the constraints of Earth’s gravity and conventional toroidal geometries. Their perseverance is commendable and deserves genuine respect.

This Resonance Core architecture takes a fundamentally different approach — one that deliberately emulates the natural force balance found inside stars while removing the complicating effects of gravity. It is offered in the spirit of open science, with the hope that researchers who have spent their careers pushing against these limitations will now have a new and more intuitive path forward.

The goal is not to replace existing efforts, but to provide an additional foundation that may allow those same talented minds to achieve even greater breakthroughs. Collaboration, validation, and the shared pursuit of clean, abundant energy are what matter most.

Next Steps

Our team is seeking collaboration with qualified research institutions or laboratories interested in conducting the Neon Plasma Mirror PoC as an initial validation step. Funding, facilities, and technical support for these experiments are being sought.

– Q1 Abundance LLC

q1abundancellc@gmail.com
